4 POST LIFT FP14KC-X Commercial Service/Storage Lift 14,000 lb
Original price was: $3,499.00.$1,700.00Current price is: $1,700.00.
Description

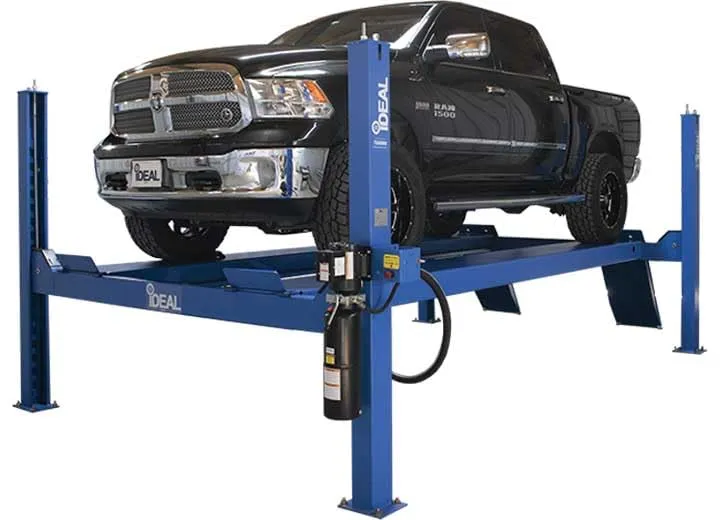

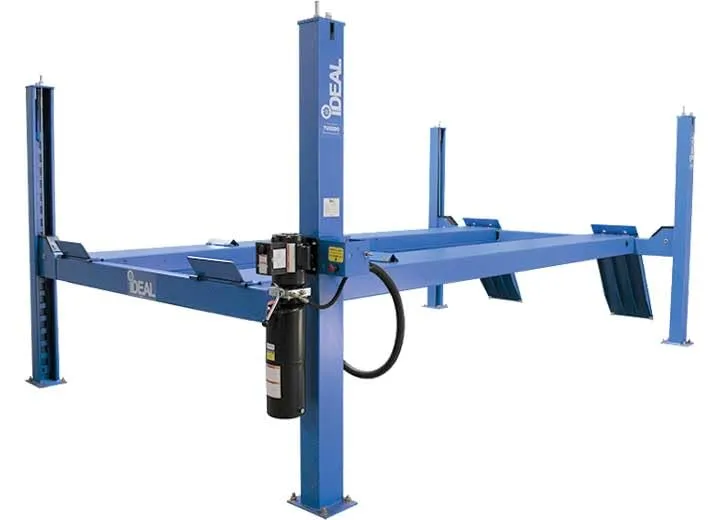

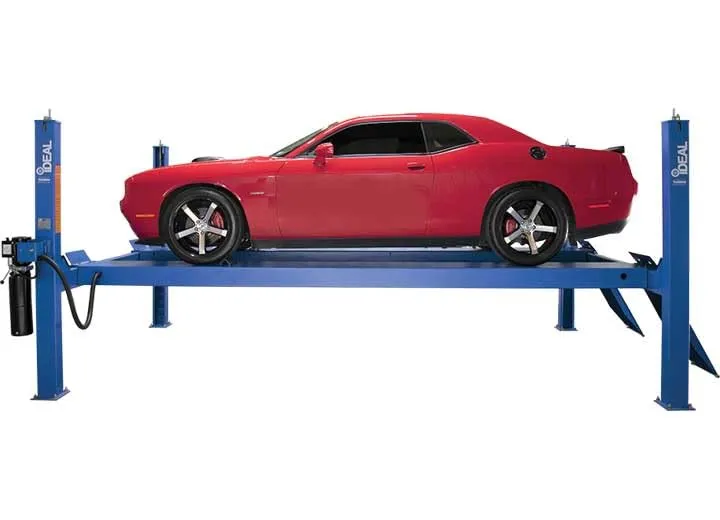

4-Post 14K Commercial Service Lift (FP14KC-X)
Heavy-Duty Commercial Grade Lift
The FP14KC-X is a professional 14,000 lb capacity 4-post lift designed for demanding commercial applications. Featuring rugged construction and advanced safety systems, this lift delivers reliable performance for busy automotive shops, dealerships, and fleet service centers.
Commercial Strength
14,000 lb capacity handles heavy-duty trucks, fleet vehicles, and equipment with ease.
Durable Construction
Heavy-gauge steel with reinforced crossmembers and industrial powder coating.
Advanced Safety
Automatic mechanical locks with visual indicators and emergency stop system.
Versatile Design
Includes adjustable runways and jack trays for various service applications.
Key Benefits
- Ideal for alignment work, storage, and general vehicle service
- Extra-wide runways accommodate dual rear wheel vehicles
- Low-profile design (6.5″) for easy vehicle access
- Smooth hydraulic operation with 3.5HP power unit
- Meets all ANSI/ALI safety standards for commercial use
- Includes wheel stops and drip trays as standard
Technical Specifications
| Manufacturer | BestBuy Auto Equipment |
|---|---|
| Model Number | FP14KC-X |
| Lift Type | 4-Post Commercial |
| Rated Capacity | 14,000 lbs |
| Maximum Lift Height | 78 inches |
| Minimum Height | 6.5 inches |
| Overall Length | 216 inches |
| Overall Width | 96 inches |
| Runway Width | 48.5 inches (adjustable) |
| Power Requirements | 220V Single Phase, 30A |
| Hydraulic System | 3.5HP Motor, 4.0 GPM Pump |
| Overall Weight | 3,850 lbs |
| Certifications | ANSI/ALI Certified, OSHA Compliant |
Package Includes
- Four-post lift assembly with all structural components
- Hydraulic power unit with 3.5HP motor
- Adjustable runways with locking positions
- Set of wheel stops (4)
- Drip trays for fluid containment
- Jack trays for supplemental lifting
- Complete hardware installation kit
- Detailed installation manual
- Operation and maintenance guide
- Safety certification documents
Installation Requirements
- Concrete Specifications:Â Minimum 6″ thickness, 4,000 psi compressive strength
- Electrical:Â Dedicated 220V single phase, 30A circuit
- Ceiling Height:Â Minimum 14 feet recommended
- Space Requirements:Â Minimum 18′ length x 10′ width clear space
- Anchoring:Â Requires 1″ diameter anchor bolts (not included)
Return Policy
- 30-day return period from delivery date
- 25% restocking fee applies
- Customer responsible for return shipping costs
- Must be in original, unused condition
- Special order items may not be returnable
Safety Information
- Never exceed the 14,000 lb rated capacity
- Always verify safety locks are engaged before working under vehicle
- Maintain proper vehicle balance during lifting
- Inspect all components regularly for wear or damage
- Only operate on level concrete meeting specifications
- Use additional safety stands when required
- Keep all body parts clear during lift operation
Warranty Coverage
- Structural Components:Â 5 years
- Hydraulic System:Â 2 years
- Electrical Components:Â 1 year
- Wear Items:Â 90 days
Warranty requires professional installation and proper maintenance. Does not cover damage from misuse, improper installation, or normal wear and tear.
Commercial Applications
- Automotive repair shops
- Dealership service centers
- Fleet maintenance facilities
- Truck service centers
- Vehicle alignment shops
- Commercial vehicle storage
