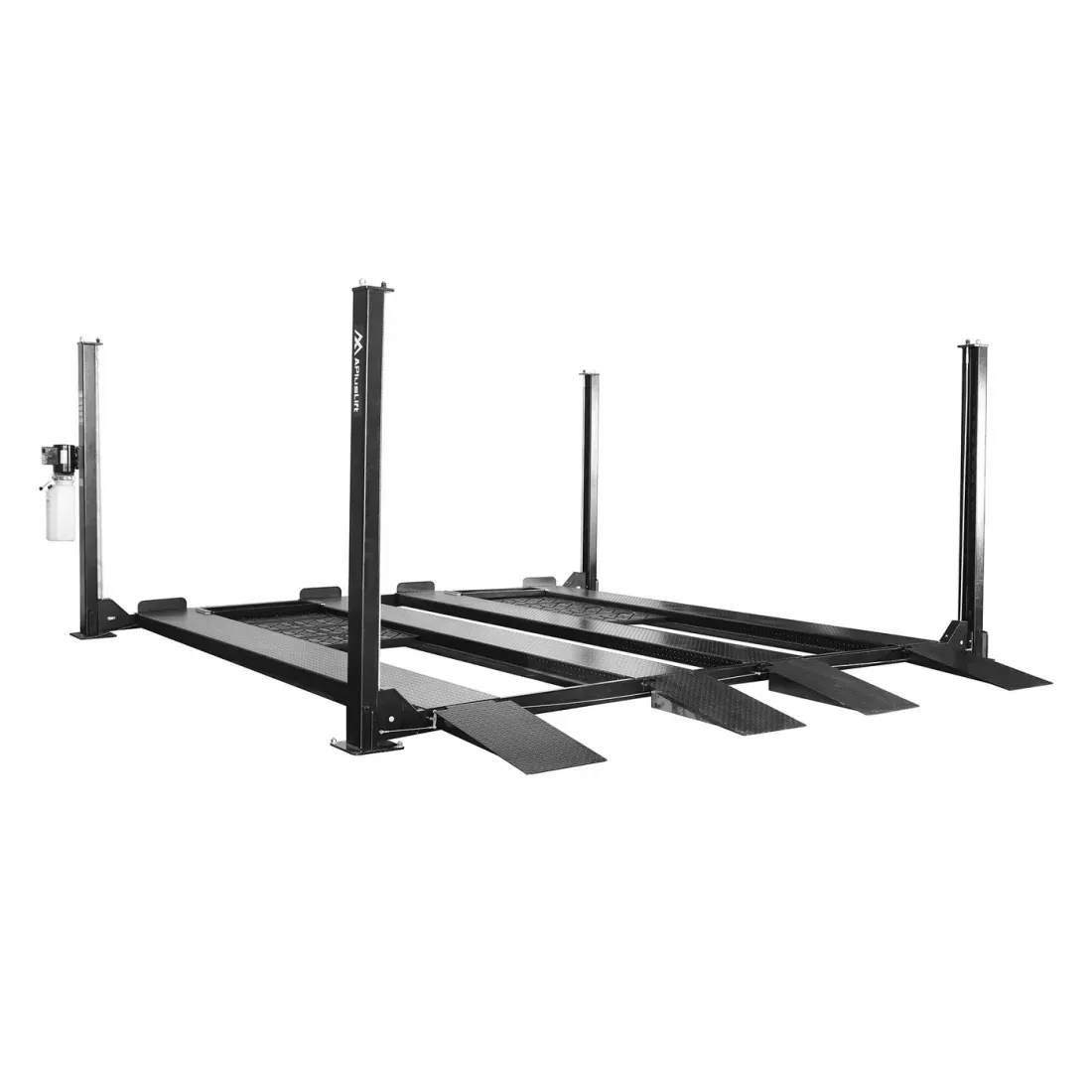

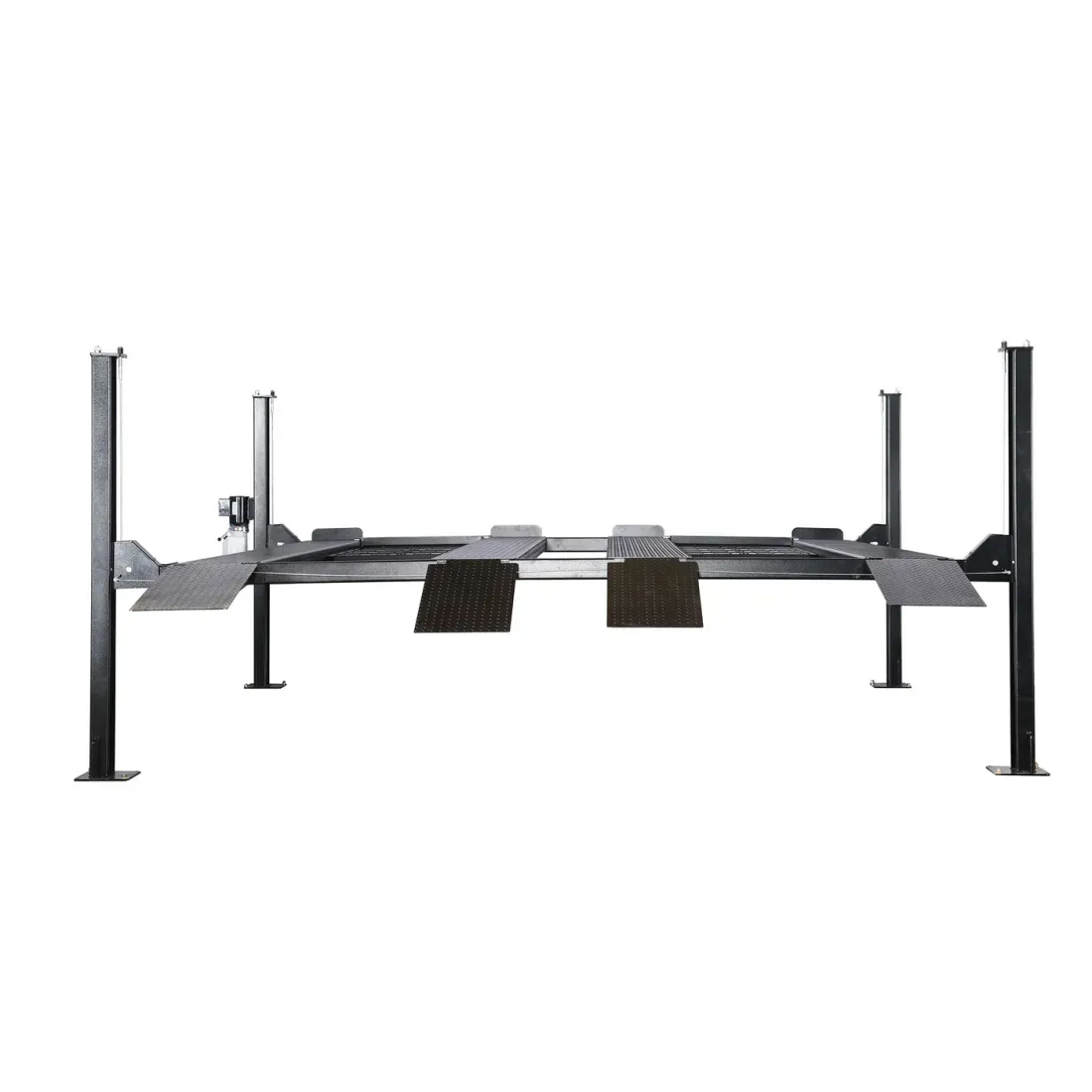

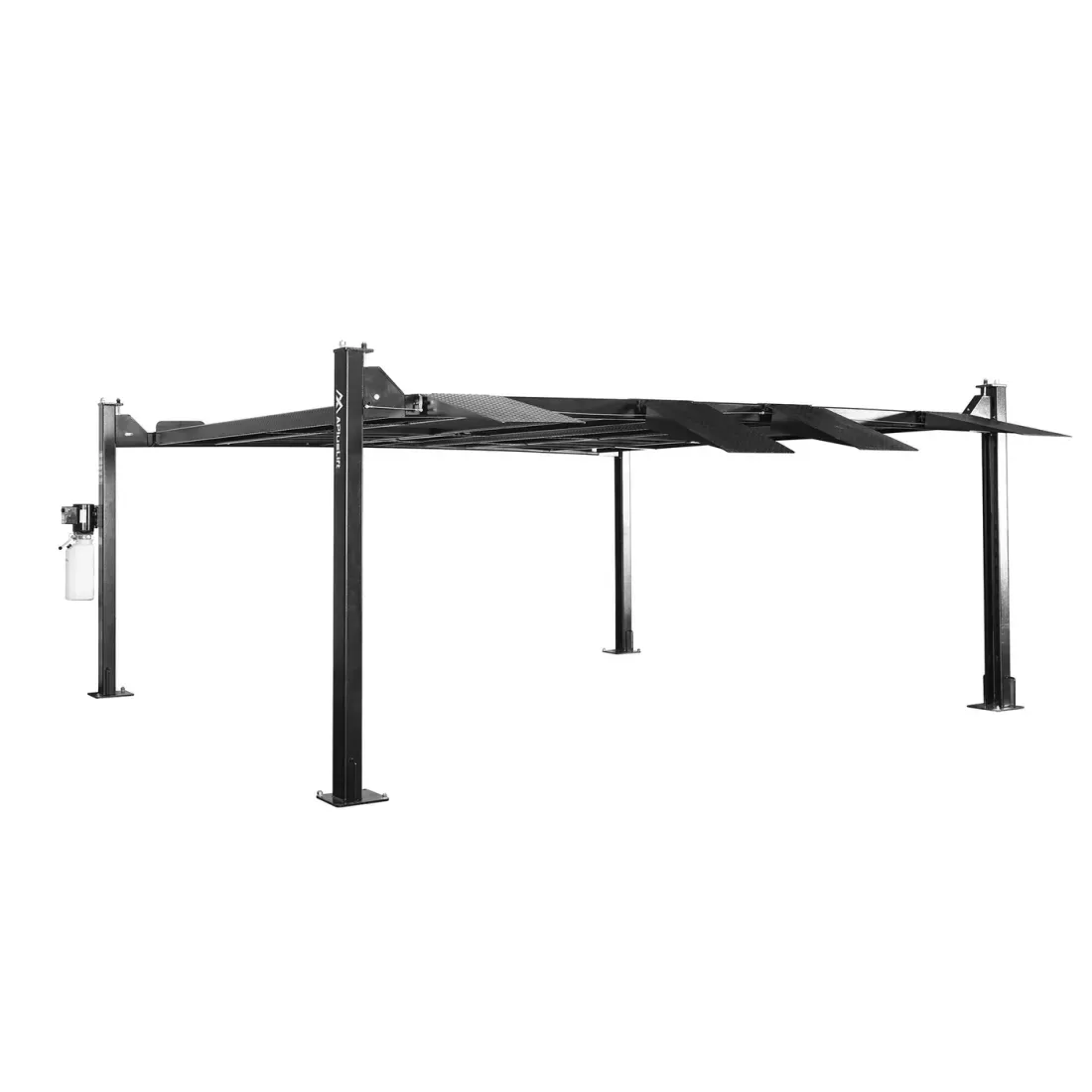

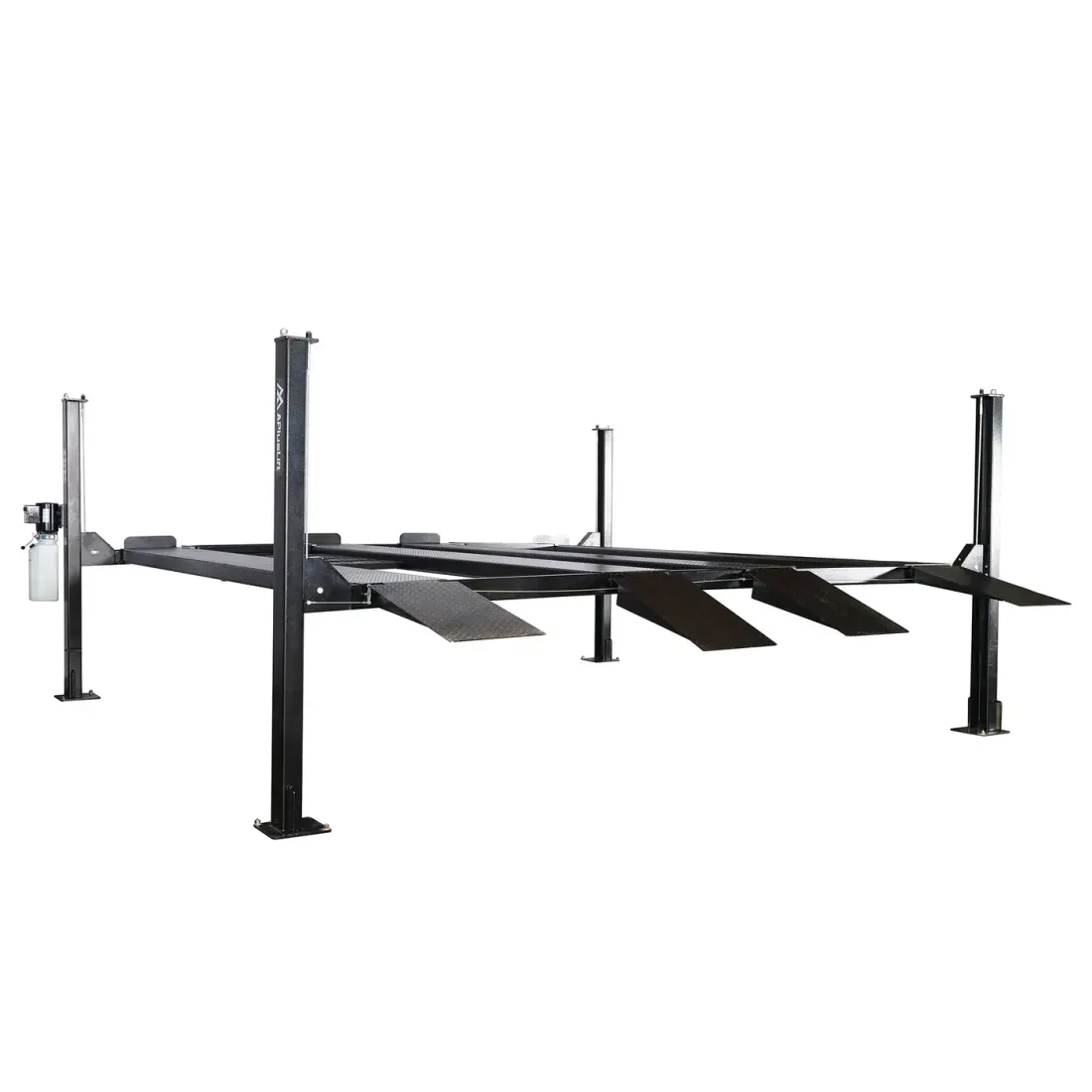

9,000LB 4-Post Double Deck Parking Storage Car Lift – HW-9KDP
Original price was: $5,950.00.$3,275.50Current price is: $3,275.50.
Description
- Industry leading 3 YEAR WARRANTY (a $499 value!)
- Column to Column Width 190″; Lifting Height 82″; Overall Dimensions 230″L x 210″W x 96″H

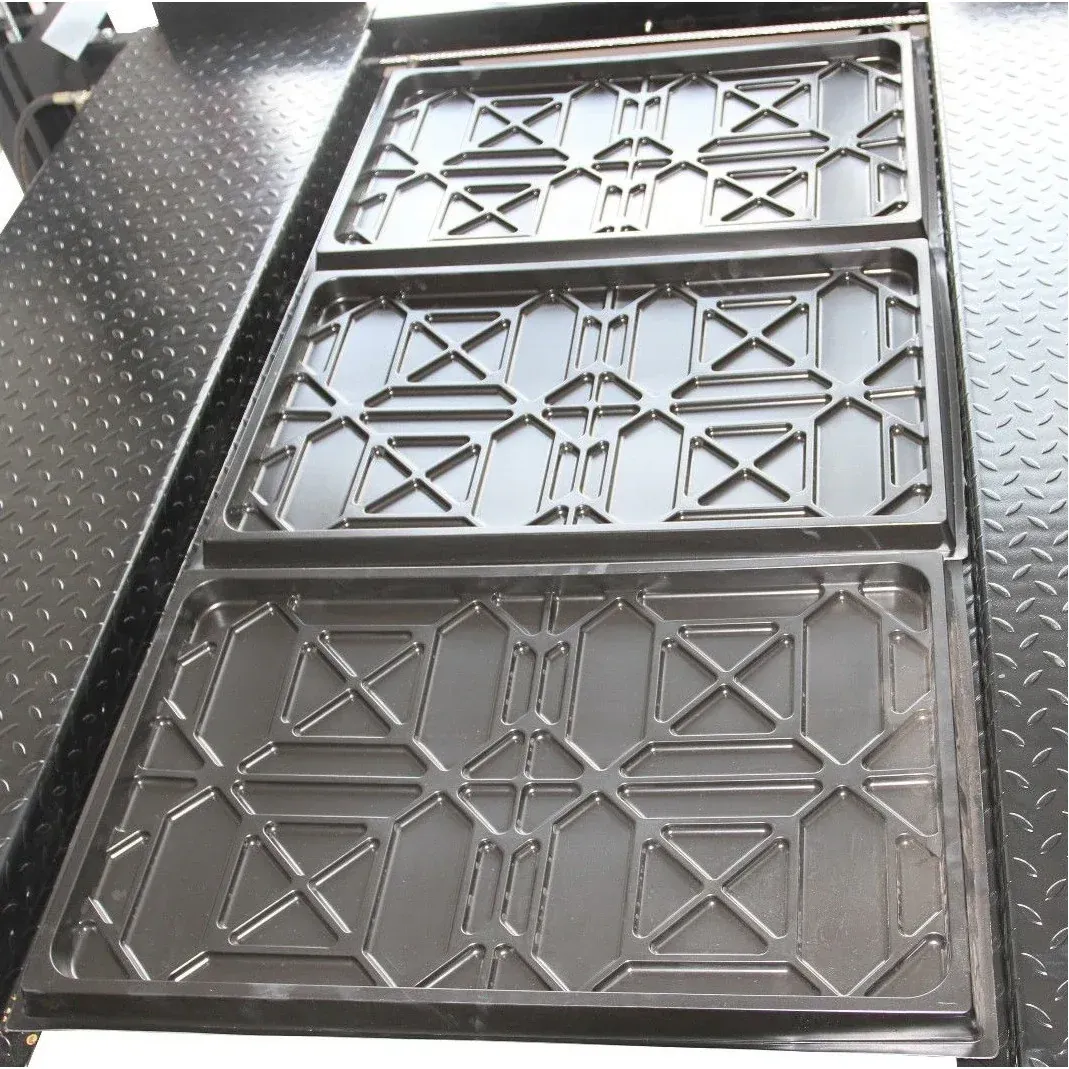

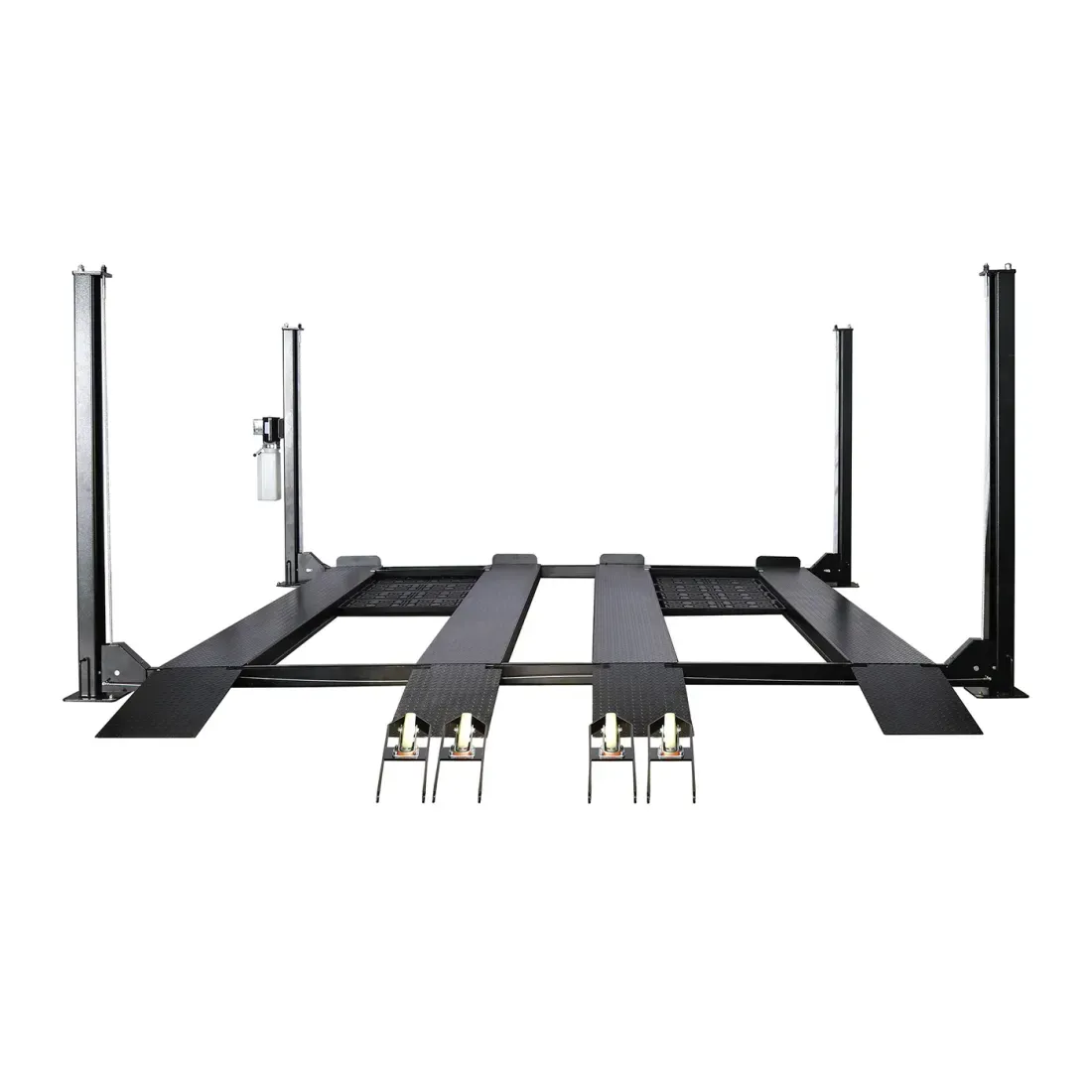

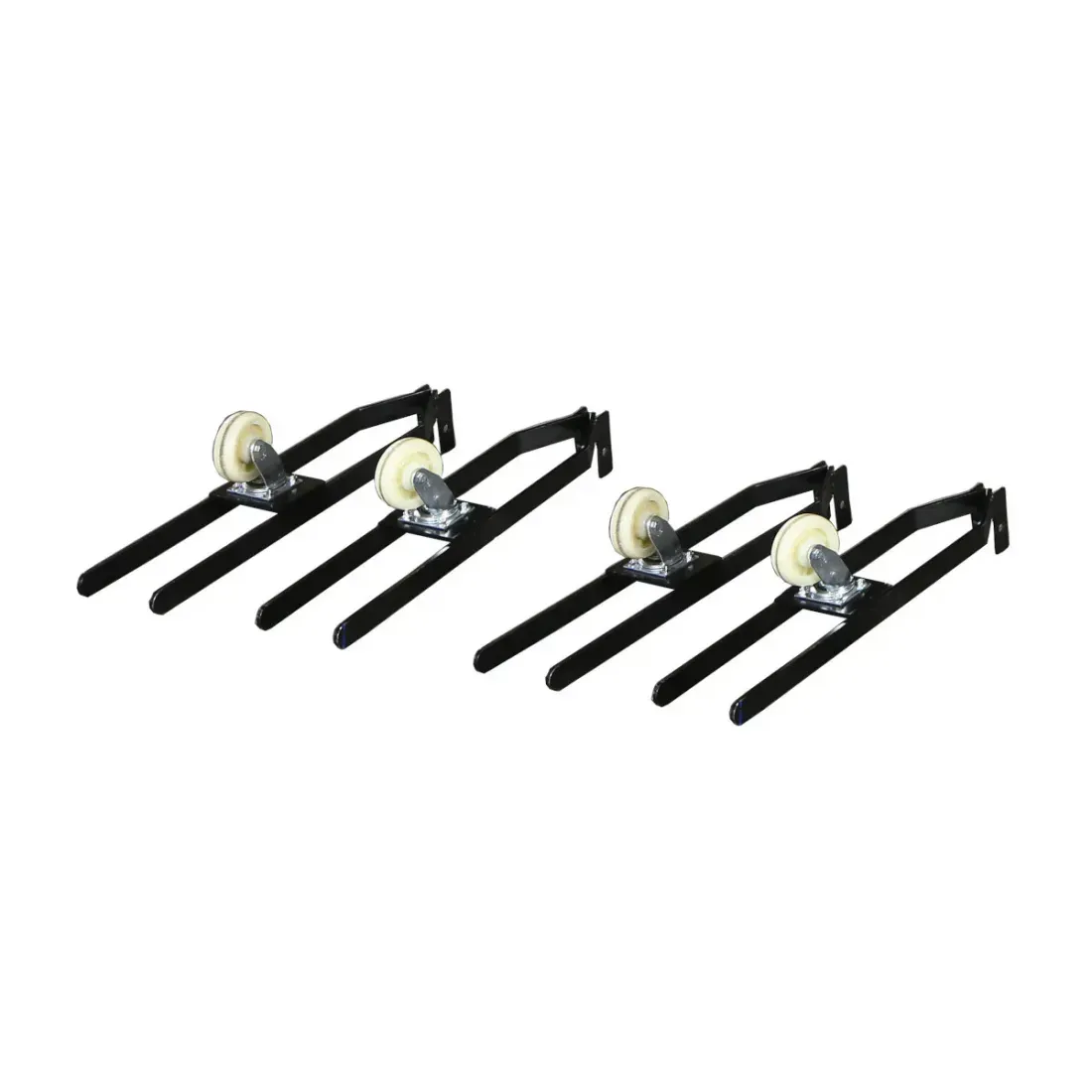

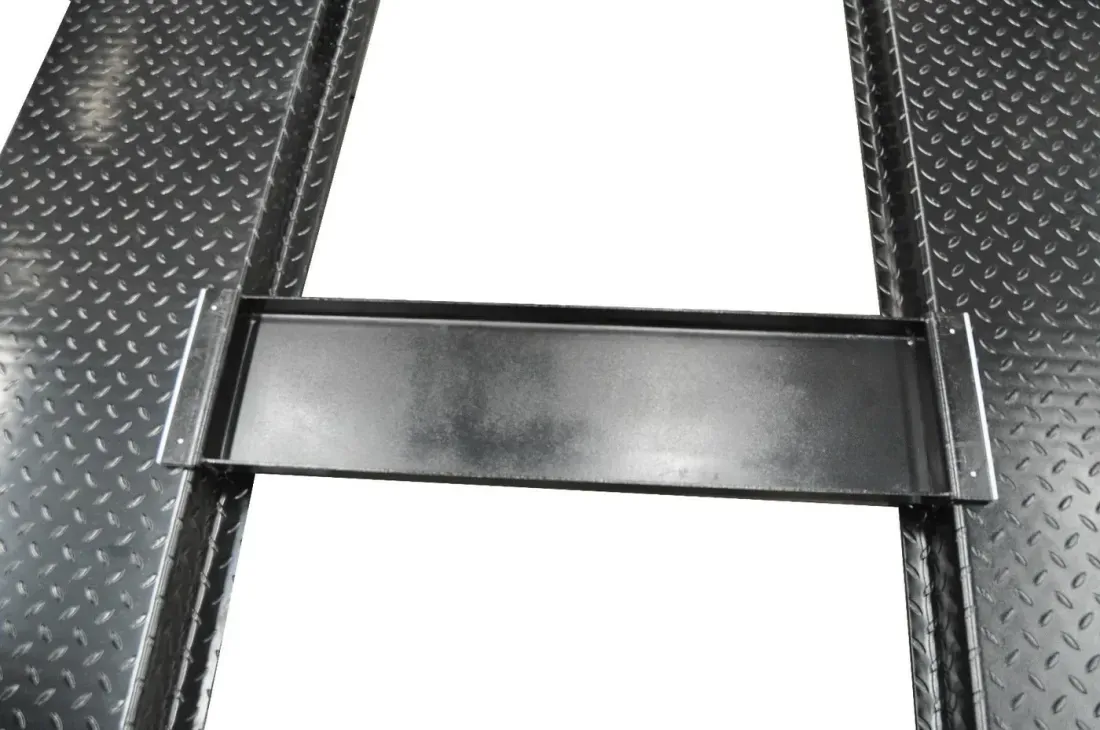

- Free Caster Kit, 2 Jack Trays, 6 Drip Trays, and 4 Removable Approach Ramps, and a Power Cord Included.
- Powder Coated Finish with Superior Corrosion Resistance
- CE Certified Lift Structure and Hydraulic System

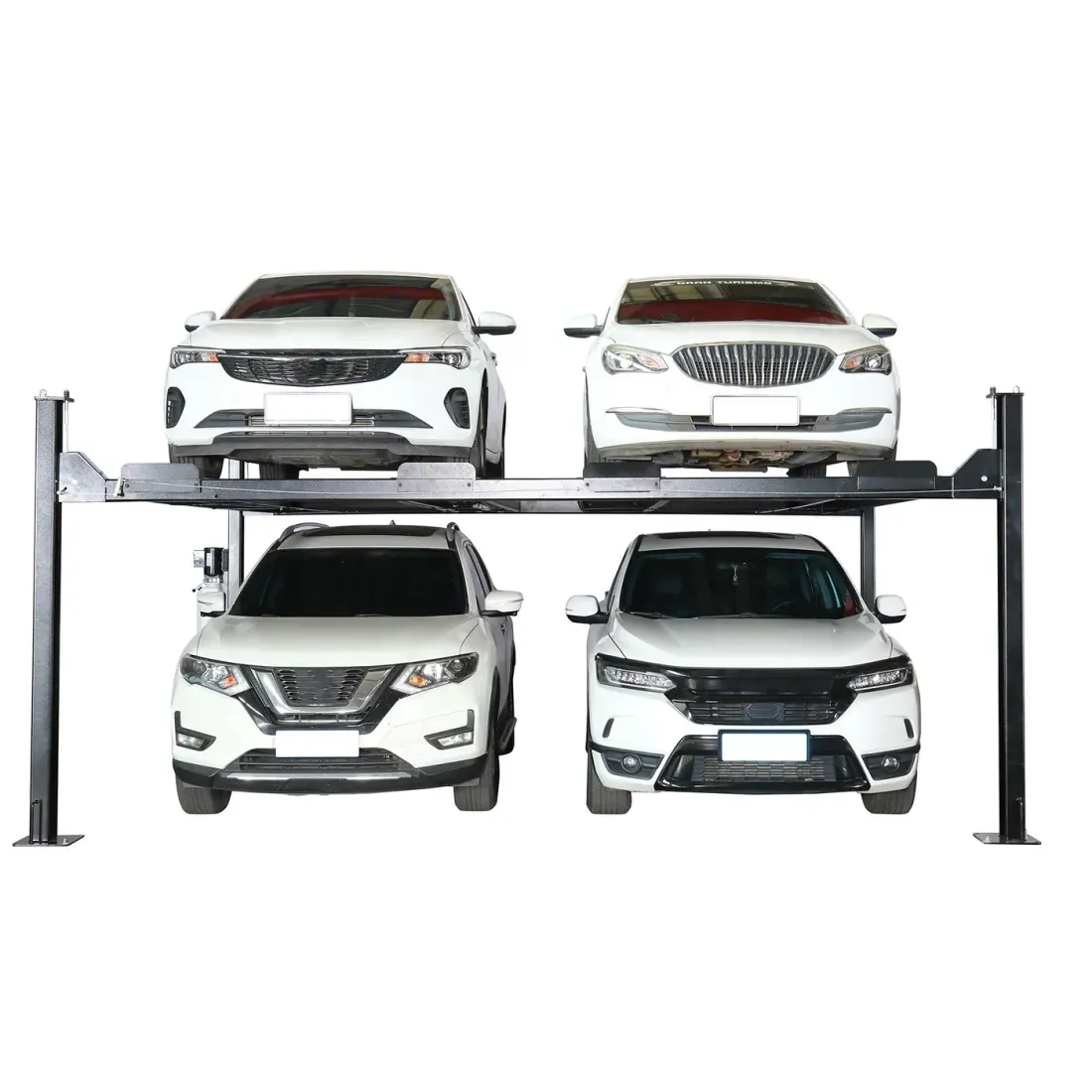

HW-9KDP 4-post 4-Post Double Decker Parking Lift is designed and built to commercial grade standards and will provide many years of service. It is built with quality materials and good workmanship and is powder coated for superior corrosion resistance.
HW-9KDP 4-Post Lift includes 2 decks, 4 runways, a caster kit, 2 jack trays, 6 drip trays, 4 removable approach ramps, and a power cord.
Free shipping to lower 48 states with forklift (or similar) on-site, or free pickup at nearby terminal. Car lifts require on-site forklift (no liftgate). We strongly recommend against renting a forklift; expense not reimbursed. See shipping policy below for limited access/remote/high-cost areas.
Frequently Asked Product, Order, and Shipping Questions and Technical Questions
Specifications and Features
- Installation Manual
- 3 Year (36 Month) Warranty
- Lifting Capacity: 9,000LB
- Usage: Parking/Storage/Service
- Powder Coated Finish with Superior Corrosion Resistance
- 4 Approach Ramps Included
- Overall Length: 230″ with ramp or 194″ without ramp
- Overall Height: 96″
- Overall Width: 210″
- Lifting Height: 82″
- Clearance Under Runway: 79″
- Width between Posts: 190″
- Drive Through Width: 93″x2
- Runway Size: 184″L x 19″W
- Width Between Four Runways: 37 3/8″ – 19 11/16″ – 37 3/8″
- Approach Ramps Size: 36″L x 19″W
- Lifting Time: 50 seconds
- Motor: 110V Single Phase 1.5HP 10A (recommend a 30A breaker)
- Hydraulic Oil: 3-5 gallons AW32/AW46 (Not Included in the Package)
- Concrete Thickness: 4″ 3000psi
- Shipping Weight: 2,850LB
- Shipping package size: 210″L x 22″W x 36″H
