Forward lift dp18 18,000lb ali certified two-post lift
Original price was: $8,099.00.$2,399.00Current price is: $2,399.00.
Description

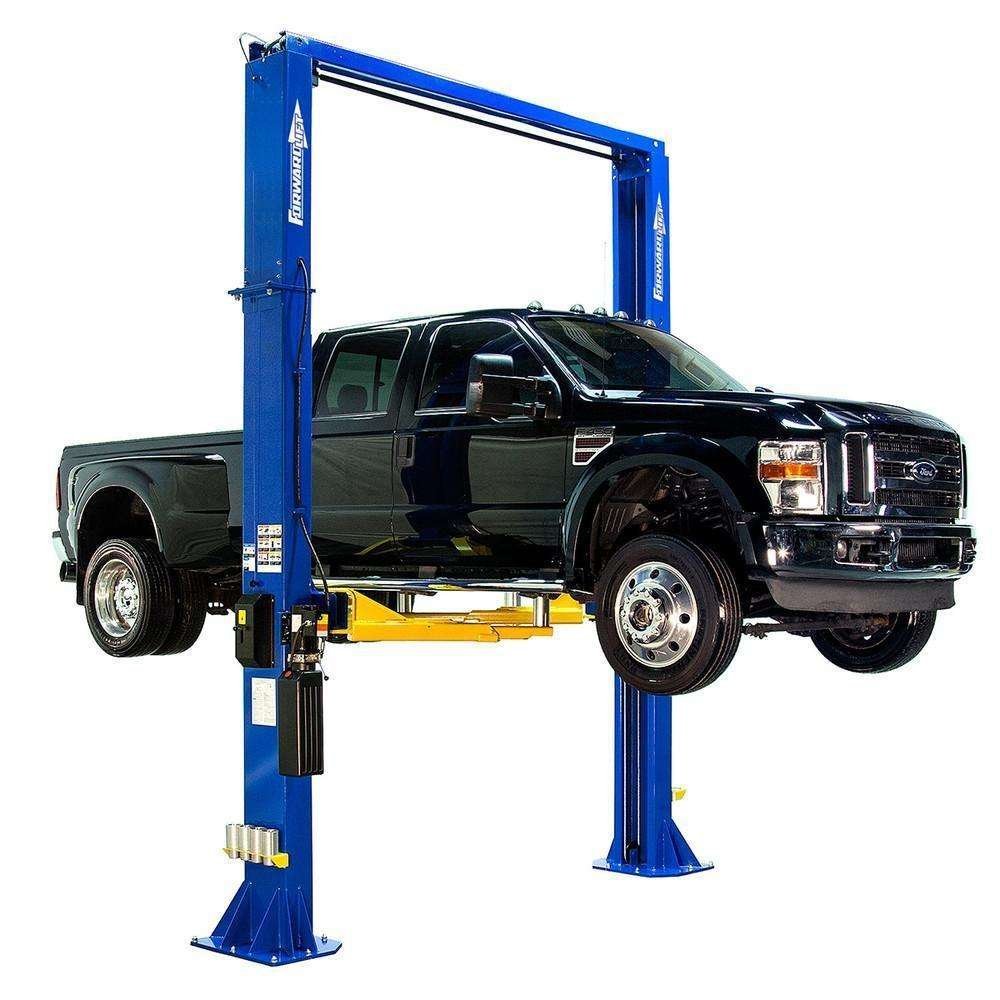

DP18 Heavy Duty Two-Post Lift Features:

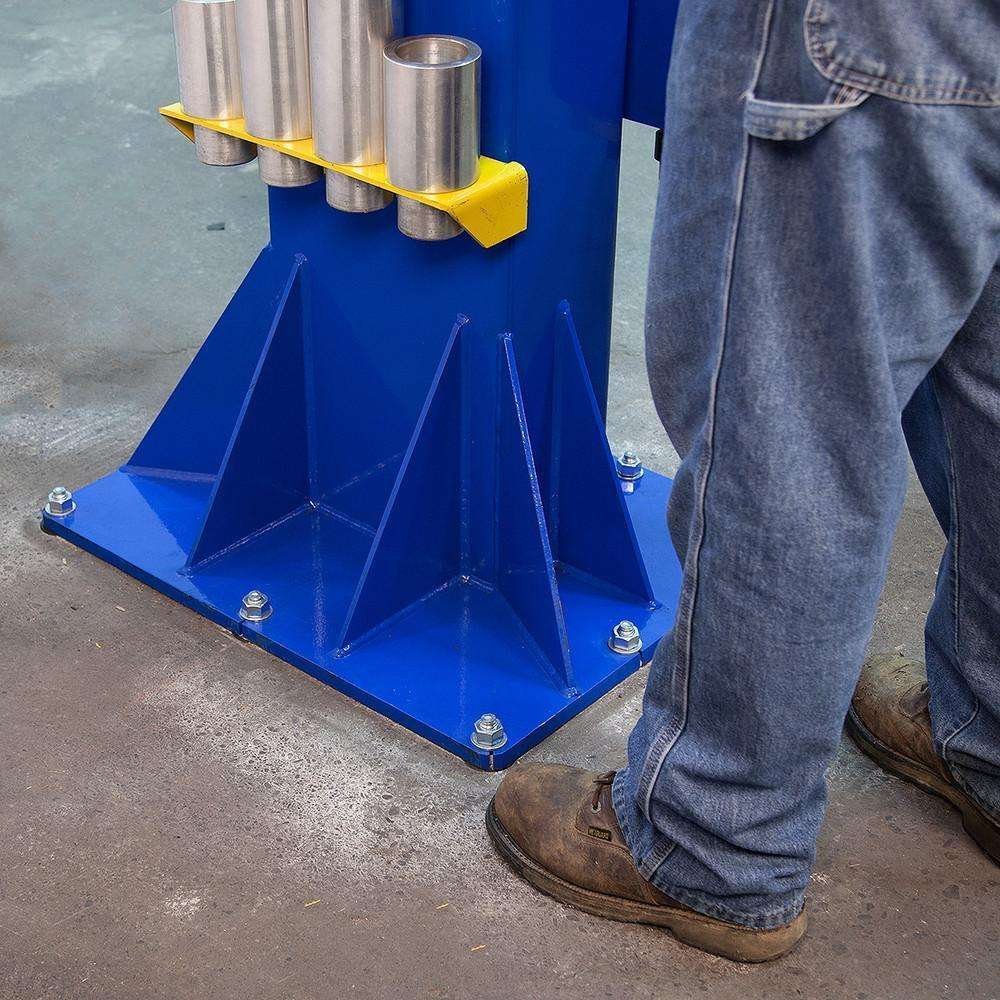

The DP18 is constructed of high strength heavy gauge steel columns. Large gusseting on substantial base plate foundations provide the stability and support you want for a heavy truck lift. With a capacity of 18,000 pounds your shop can start working on work trucks, vans, or small buses along with everything else that rolls through the door.
Truck Adapter Extensions:
The DP18 comes with eight high strength aircraft grade aluminum truck adapter extensions. Four 5” and four 10” adapters allow you to lift a wide range of vehicles. These are heavy duty adapters without the “heavy”. Because they’re made of aluminum you’ll be able to place and maneuver them without strain. They have a convenient column bracket for storage.
Arms: Forward’s heavy-duty two-post DP18 has two-stage arms that can easily be extended and retracted while lying on the floor spotting a vehicle. Couple that with the light adapter extensions and you win the spotting large vehicle battle!
2-STAGE ARMS with heavy-duty reinforced gusseting
- Extended and retracted from 61” to 38”
- 5 1/2” minimum adapter height from floor

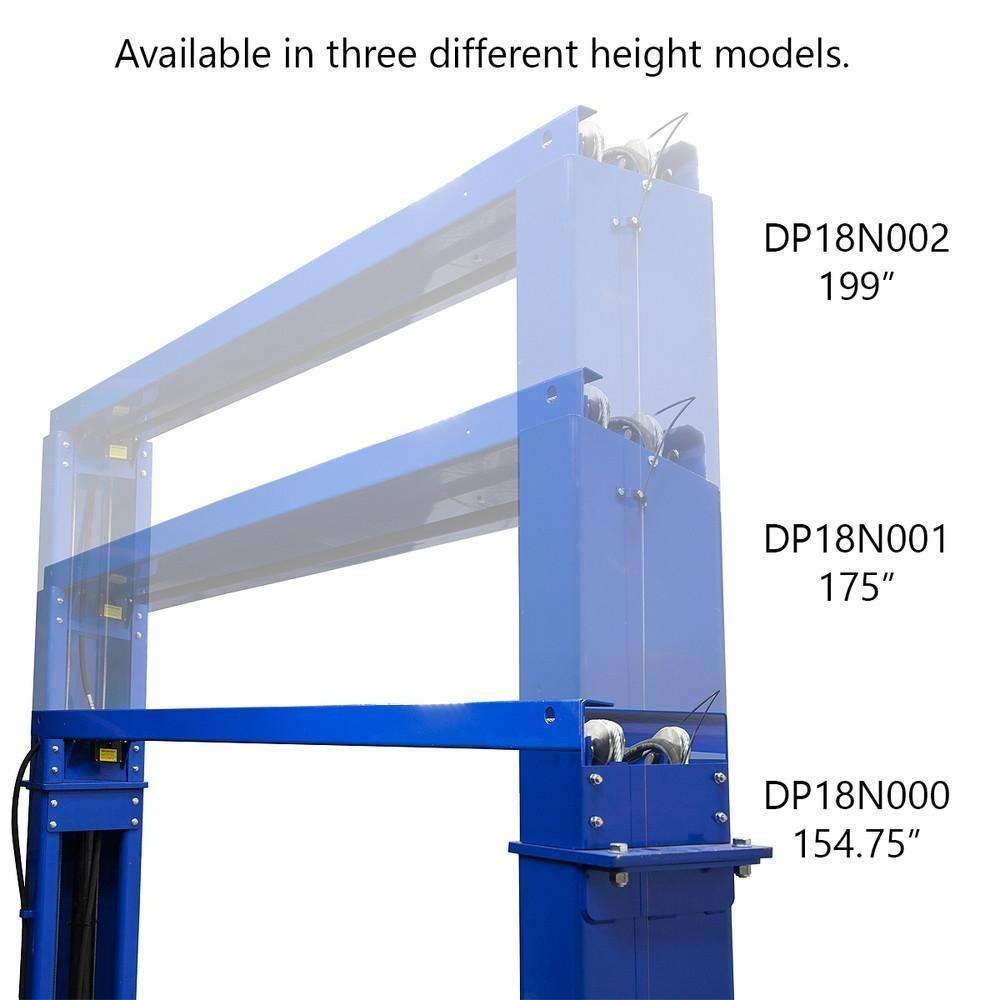

Extended Height Model Options:
The DP18 offers three different height options, for the lowest ceiling option DP18N000 the overhead cross member mounts directly to the column without a column extension to fit a 155 ¾” (12’-11 ¾”) ceiling height. The standard height DP18N001 fits a 176” (14’-8”) ceiling height and the extended height DP18N002 fits a 200” (16’-8”) ceiling height. With all these options it’s easy to choose the best package to fit into your existing shop.
Additional Features:
- 18,000 lbs. capacity for lifting most trucks and vans.
- Features symmetrical column design
- Direct-Pull Lifting – high efficiency, low maintenance technology
- Closed loop hydraulic system – protect against hydraulic contamination
- Powder coat paint is more durable than conventional coatings
- Third party tested and certified by ALI
- Padded shut-off bar
- Low profile arms and truck adapters
- Single point release lock at operations center
Specifications
| Specifications | DP18N000BL DP18N000RD |
DP18N001BL DP18N001RD |
DP18N002BL DP18N002RD |
|||
| Column Extensions | No Extensions | Standard Height | Extended Height | |||
| Arm Type | 2 Stage | 2 Stage | 2 Stage | |||
| Total Capacity | 18,000 lbs. (8164kg) | 18,000 lbs. (8164kg) | 18,000 lbs. (8164kg) | |||
| Rise* | 83-1/4” (2114mm) | 83-1/4” (2114mm) | 83-1/4” (2114mm) | |||
| Overall Height | 154-3/4” (3930mm) | 175″ (4445mm) | 199” (5054mm) | |||
| Height to Shut-Off | 147-1/4” (3735mm) | 167-1/4″ (4250mm) | 191-1/4” (4860mm) | |||
| Minimum Ceiling Height | 155-3/4” (3956mm) | 176″ (4470mm) | 200” (5080mm) | |||
| Overall Floor Width | 154-3/8” (3921mm) | 154-3/8” (3921mm) | 154-3/8” (3921mm) | |||
| Inside Column Width | 119-5/8” (3038mm) | 119-5/8” (3038mm) | 119-5/8” (3038mm) | |||
| Drive Through | 108-1/4” (2749mm) | 108-1/4″ (2750mm) | 108-1/4″ (2750mm) | |||
| Arm Reach | 38” (965mm) 61” (1549mm) |
38” (965mm) 61” (1549mm) |
38” (965mm) 61” (1549mm) |
|||
| Minimum Adapter Height | 5-1/2” (139mm) | 5-1/2” (139mm) | 5-1/2” (139mm) | |||
| Stackable Adapter Height (Low Extension) |
10-1/2” (266mm) | 10-1/2″ (266mm) | 10-1/2″ (266mm) | |||
| Stackable Adapter Height (High Extension) |
15-1/2” (393mm) | 15-1/2″ (393mm) | 15-1/2″ (393mm) | |||
| Voltage* | 208/230v, 20 amps | 208/230v, 20 amps | 208/230v, 20 amps | |||
| Amps | 20 | 20 | 20 | |||
| Motor | 2 HP/1Ø | 2 HP/1Ø | 2 HP/1Ø | |||
| * Specifications subject to change without notice or liability. *Maximum lifting height with 10” adapters * 1Ø, 3Ø, and 3Ø 600V available via special order – restrictions apply |
||||||
