About this item :

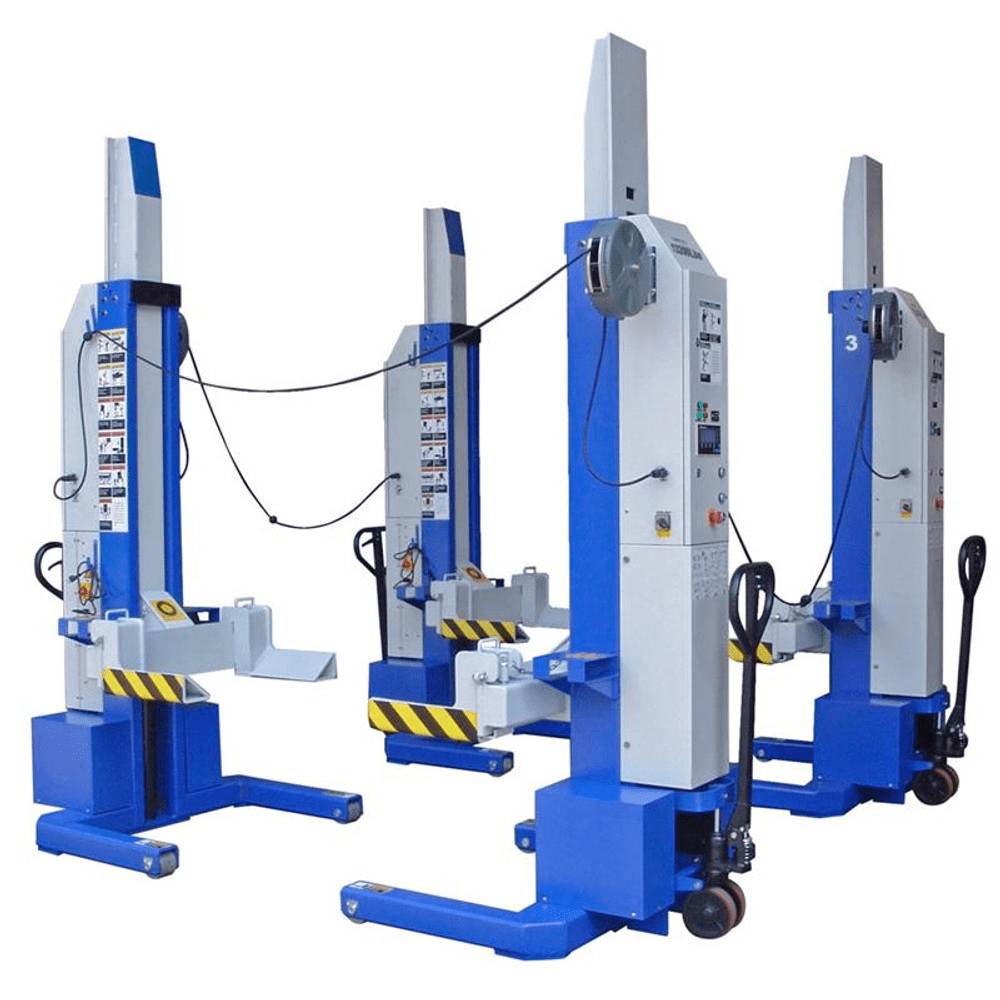

The MSC-13K-B can be purchased in sets of 2, 4 or 6 columns with a total capacity up to 78,000 lbs. The iDEAL MSC-13K-B is a compact mobile design that allows it to be used in a normally flat bay when needed or stored out of the way when performing service that does not require a lift. The design allows safe lifting of passenger cars, light pick up trucks when using optional accessories and up to a school bus or fire truck in the standard configuration.
Features

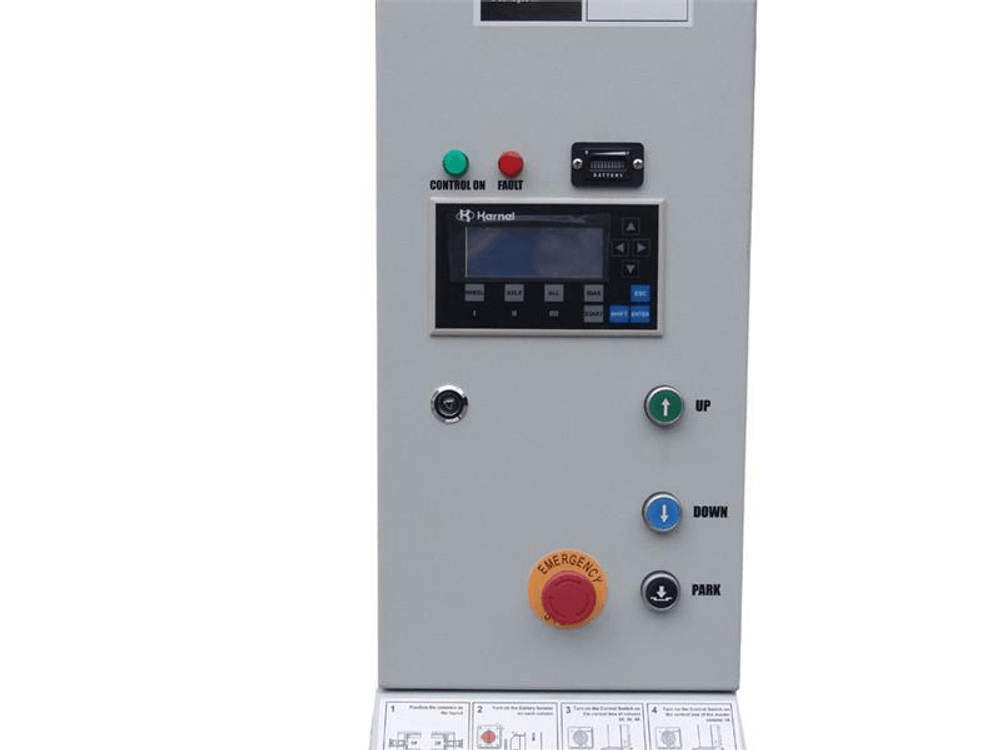

•Easy to use control panel
•Operable from any column

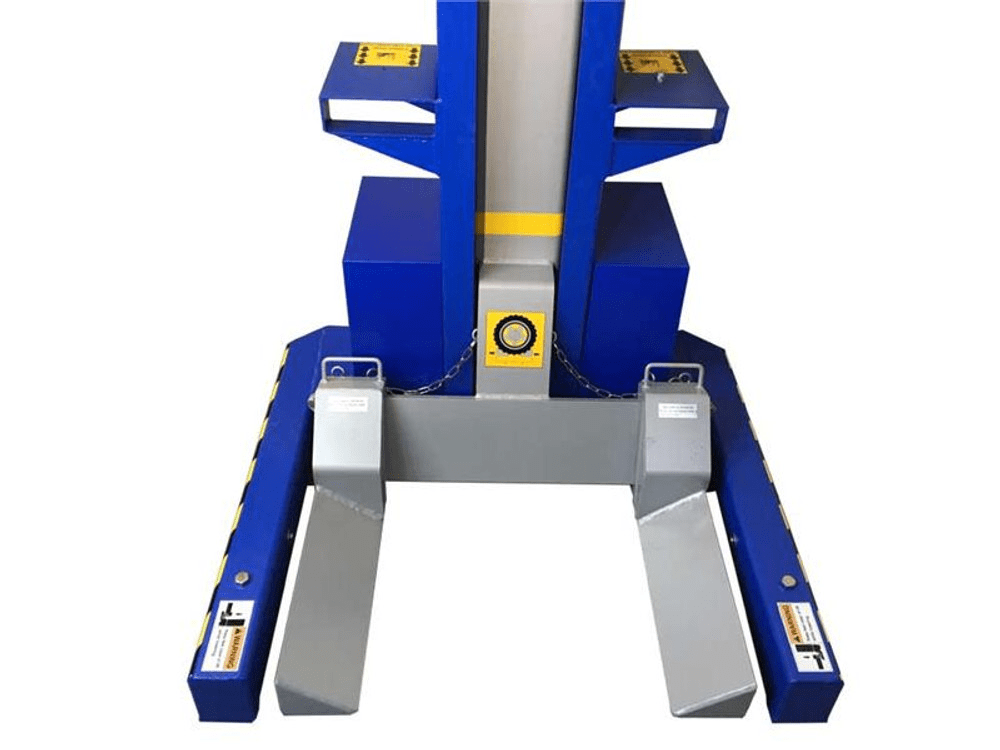

•Adjustable fork accommodates many tire sizes
•Direct drive hydraulic cylinder
•Independent mechanical lock system
•Battery operated with onboard charging system
•Surface mounted and easily moved in bay
•Can be stored out of the way when not in use to maximize work space
•Requires hydraulic oil before use (Not included)
•Batteries NOT Included. Requires (2) 12V Deep Cycle Batteries per Column
Specifications
| Lift Models | MSC-13K-B-452 |
| Column Configurations | 4 Column |
| Capacity | 52,000 lbs |
| AC Power (Input, Per Column) | 100-140VAC, 60Hz, 1 PH |
| DC Power (Output, Per Column) | 24VDC |
| Lifting Height | 67.1″ |
| Column Heights – Min/Max | Min. 88.6″ / Max 155.5″ |
| Overall Width | 44.1″ |
| Fork Adjustable Range | 6.3″ – 22″ |
| Fork Length | 14″ |
| Fork to Column Clearance | 9.3″ |
| Rise Time | 75S |
| Descent Time | 60S |
| Maximum Distance between Columns | 32.8′ |
| Minimum Concrete Surface Strength | 3000 PSI |
| Noise Level | 70 dB(A) |
| Set-Up / Operation | Indoors |
| Battery Type (Not included) | 12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105) |
| Ship Weight | 1,210 lbs per Column |
