About this item:

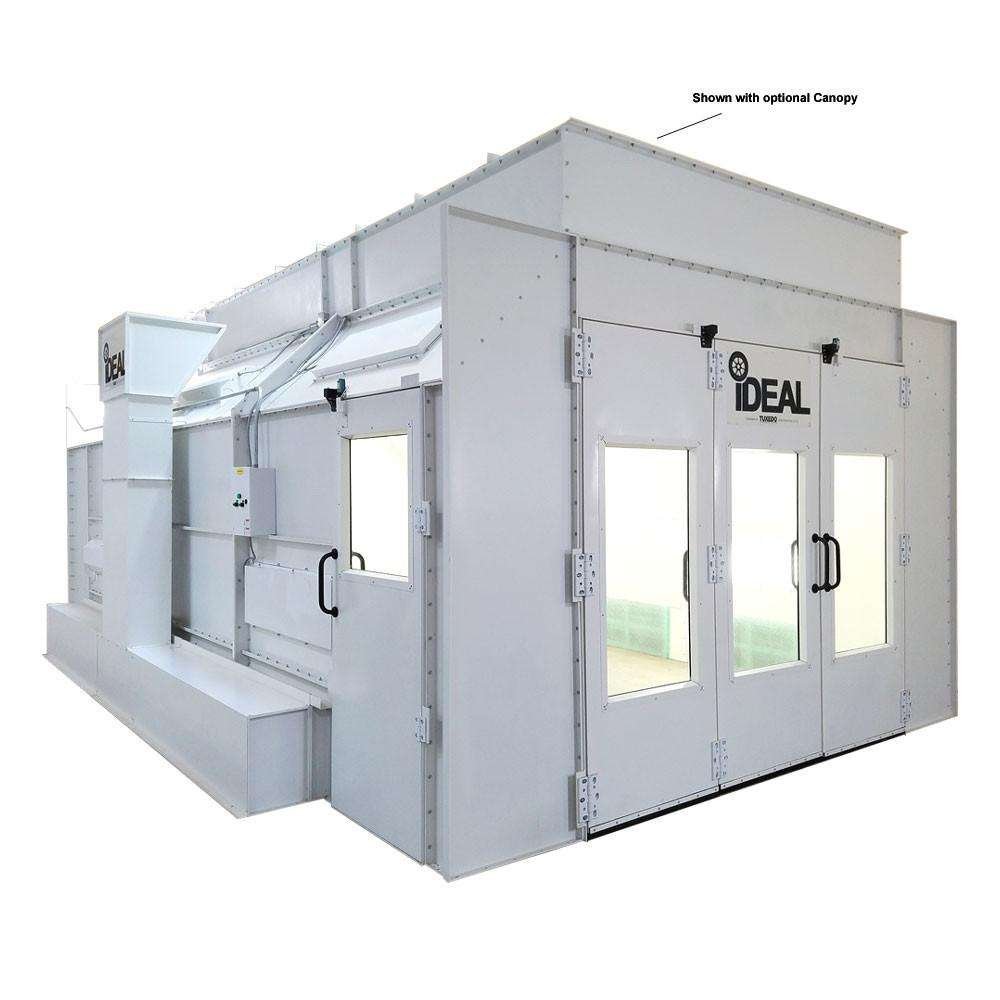

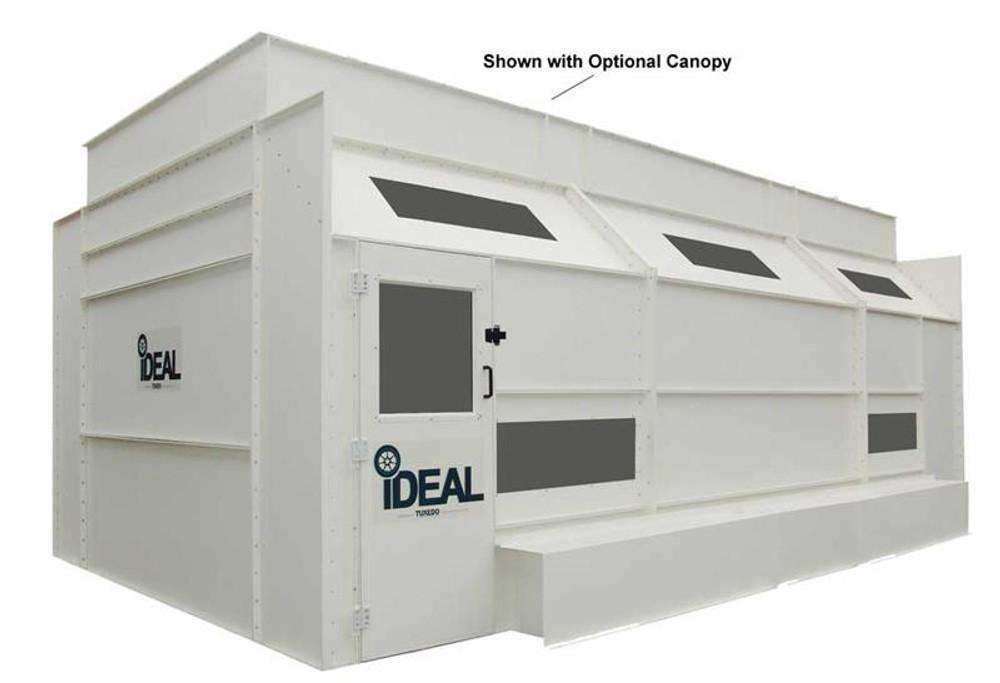

iDEAL’s PSB-SDD26-ASY-AK Side Down Draft Paint Booth is our highest quality pressurized paint booth. The Side Down Draft design pulls filtered air through ceiling of the booth and exhausts filtered air through bottom of the side walls of the booth. All of the panels receive a durable powder coat finish. Panels are constructed using 18 gauge flanged panels assembled using high quality 5/16″ hardware for a high quality, durable booth. Heavy duty hinges are used for all entry doors and have horizontal and vertical adjustment integrated into the design for easy installation. Our hip roof design utilizes vertical and horizontal lighting for effective, shadow free lighting to allow the painter to move around the booth with no light interference. The Side Down Draft Paint Booth is a pressurized booth that can be used for automotive refinishing, industrial finishing and furniture finishing.
Features
- Typically ships within 48 hours!
- Heavy duty precision punched 18 Gauge panel construction
- Optimal air flow w/ CFM 14,000 @ .5 static pressure
- Commercial grade ‘hip panel’ design for optimal lighting coverage
- Convenient 5/16” bolt & nut assembly
- Deluxe Control Panel included
- Exhaust Chimney Stacks – Included! Two powder coated 8′ exhaust chimney stacks.
- Bright White Powder Coat panel Finish – (inside & outside)
- Manometer, Solenoid Valve, Hardware & Sealant Included
- (2ea) UL Listed Dayton 24” tube-axial exhaust fan w/ spark resistant fan blades
- NEMA rated 3HP-3 Phase – 230/460VAC-60Hz motors standard
- Premium AFC intake & exhaust filters
- (10ea) LDPI Industrial Lighting T-8 ‘vertical’ light fixtures, 4 lamp
- (40ea) GE T8 Florescent Lamps – 32W, 5000K 4′ length

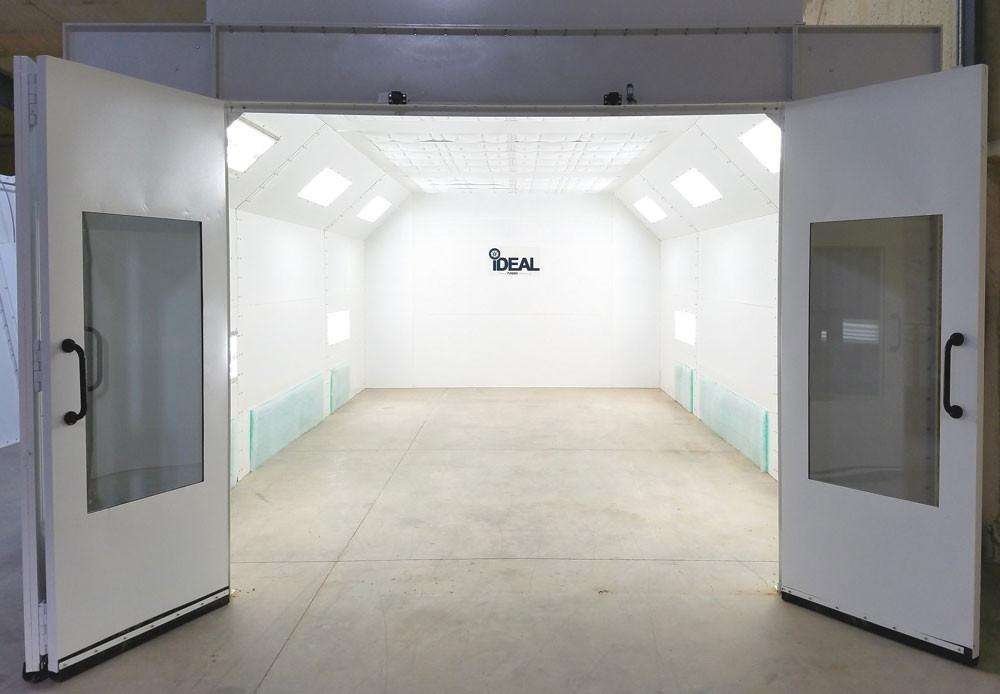

- Tri-fold entry Doors w/ viewing windows & shutoff switch
- Personnel Door w/ viewing window & shutoff switch
- Meets NFPA 33 standards
- Inside Dimensions: 26″ L X 14′ W X 9′ 3″ H
Specifications
| Paint Booth Model | PSB-SDD26B-AK |
| Inside Dimensions | 26’L X 14’W X 9′-3″H |
| Outside Dimensions | 26′-4″L X 17′-8″W X 9-5″H |
| Fan / Motor | (2ea) – 24″ Tube Axial Fans 2HP-3PH-230/460VAC-60HZ Non-Spark, NEMA Rated |
| CFM | 14,000 @ .5 Static Pressure |
| Lighting | 10 Each T-8 / 4 Bulb Light Fixtures |
| Options | Single Phase Electrical Configuration |
| 8′ Exhaust Extension Kit (13″ Diameter) | |
| 8′ Exhaust Extension Kit (13″ Diameter) | |
| Side Personnel Door Kit | |
| 48″ Solid Extension Kit | |
| Drive Thru Door Kit | |
| Gas Fired Booth Heater 3 Phase (Plenum Req.) | |
| Gas Fired Booth Heater 1 Phase (Plenum Req.) | |
| Electric Booth Heater 3 Phase | |
| Electric Booth Heater 1 Phase |
